Message Security using Certificate Client Credential in WCF

Message Security using Certificate Client Credential in WCF

In this article I am explaining how to achieve message security using certificate client credential. In my last article I described the message security using user name client credential.

Following are the steps to implement message security using Certificate Client Credential:-

Step 1:-

Go to the IIS Server by typing inetmgr in run

Step 2:-

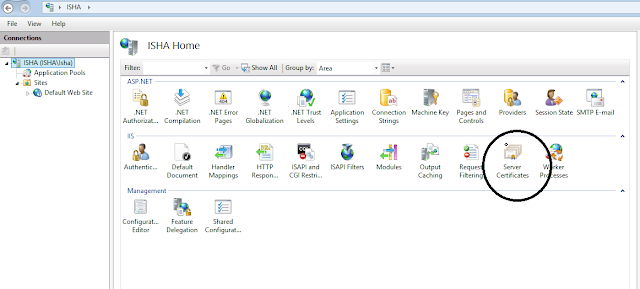

Click on server certificate

Figure 1

Step 3:-

After opening the server certificate on right panel select the create self-signed certificate

Figure 2

Now certificate creation window will be opened. Give a proper name to the certificate and click ok.

Figure 3

Step 4:-

Now create a WCF service. Go to visual studio->New->Website->Wcf Service

Step 5:-

Make changes in your web configuration file.

Add following binding tag in system.sevicemodel tag. In binding tag add message security and client credential as certificate

<bindings>

      <wsHttpBinding>

        <binding>

          <security mode="Message">

            <message clientCredentialType="Certificate"></message>

          </security>

        </binding>

      </wsHttpBinding>

    </bindings>

now add behavior tag inside the service behavior tag and the certificate detail in it which you have created on IIS in the beginning.

<behaviors>

      <serviceBehaviors>

        <behavior>

          <serviceCredentials>

            <serviceCertificate storeLocation="LocalMachine" findValue="isha" storeName="My" x509FindType="FindByIssuerName"/>

          </serviceCredentials>

          <!-- To avoid disclosing metadata information, set the values below to false before deployment -->

          <serviceMetadata httpGetEnabled="true" httpsGetEnabled="true"/>

          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->

          <serviceDebug includeExceptionDetailInFaults="false"/>

        </behavior>

      </serviceBehaviors>

    </behaviors>

Now add service tag

<services>

      <service name="Service">

        <endpoint address="" binding="wsHttpBinding" contract="IService"/>

      </service>

    </services>

Now execute the program and you will the get following window:-

Figure 4

Now create the client and add service reference and pass client credential with all the detail of certificate.

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

public partial class _Default : System.Web.UI.Page

{

    protected void Page_Load(object sender, EventArgs e)

    {

        ServiceReference1.ServiceClient svc = new ServiceReference1.ServiceClient();



     svc.ClientCredentials.ClientCertificate.SetCertificate(System.Security.Cryptography.X509Certificates.StoreLocation.LocalMachine, System.Security.Cryptography.X509Certificates.StoreName.My, System.Security.Cryptography.X509Certificates.X509FindType.FindByIssuerName, "isha");

        Response.Write(svc.GetData());

    }

}

Now execute the code and you will get following output

(I simply return string from service to the client)

Figure 5

if you find any problem to run this code kindly mail me your error at malhotra.isha3388@gmail.com
